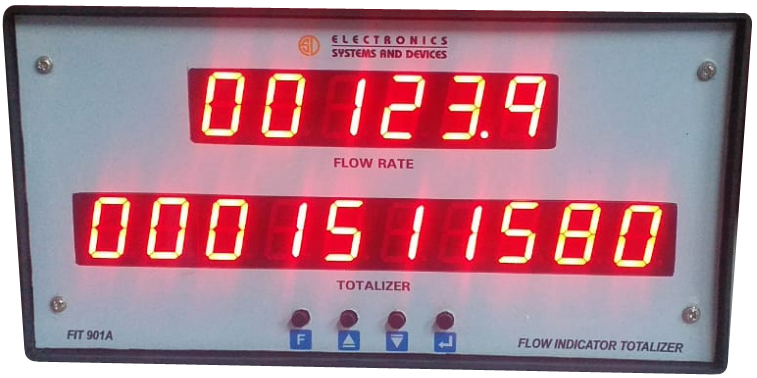

FIT 901A : Flow Indicator Totalizer (FIT) with Flow 6 digit, Totalizer 10 digit 25mm LED display in 282 x 138mm
| # |
Characteristics |
Specifications |
| 1 | Model | FIT 901A |
| 2 | Input | 4-20 mA |
| 3 | Indication | Flow: 6 digits, Totalizer: 10 digits 25mm Super Bright Red LED |
| 4 | Indication Accuracy | +/- 0.1% of full scale +/- 1 digit |
| 5 | Programming | 4 key membrane keypad |
| 6 | Flow | Linear or Squareroot extractor option selectable |
| 7 | Totalizer | Reset, Pause or Resume option selectable |
| 8 | Calibration | Software based |
| 9 | Power Supply | 230 V AC, +/- 10% (other options on demand) |
| 10 | Cutout | 282 x 138 mm |
